BLE Best of Lab Equipment
BLOCK

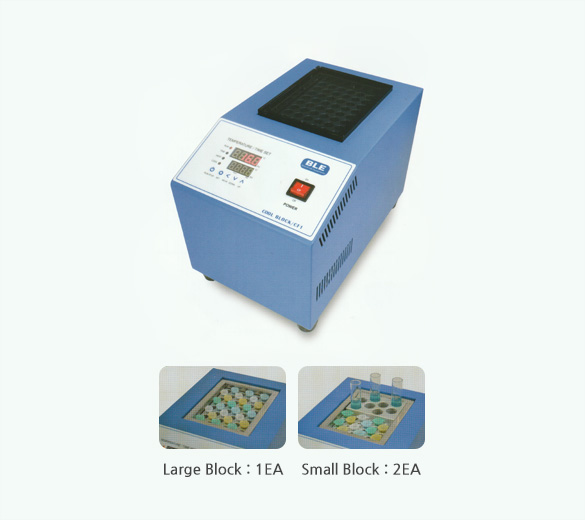

COOL BLOCK - CF1
– Feature
· A wide range of interchangeable blocks to fit any sample tube or vial.
· Block combined with the close fit of the tube for fast efficient heat transfer.
· THERMO BLOCK with a digital microprocessor controller (PID) to maintain the bi-section of high & low temperature compartments.
· Alarm Function : Over-temperature, malfunction of sensors.
· Included of digital timer : up to 99 hr. 59min.
· Block for excellent chemical resistance to acids, bases and solvents by anodizing treatment.
· CE certified
– Specification
| Model | CF1 | |
|---|---|---|
| Temp. rang | -5℃ ~ 110℃ | |
| Temp. accuracy | ±0.2℃ | |
| Temp. uniformity | ±0.2℃ | |
| Temp. control | 2 Zone P.I.D.control | |
| Cooling | Thermoelectric module | |
| Heating | Catridge Heater | |
| Timer | 1min ~ 99hour 59min | |
| Material | Powder coated steel & Stainless steel | |
| Weight | 5.4 kg | |
| Dimension ( W×D×H, mm ) | 181 × 293 × 210 | |
| Wattage | 290W | |
| Power | AC100 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz |
|
| Weight | 5.8 kg | |
– Price
· 1,200,000 원 (부가세 별도, 블럭미포함)
COOL BLOCK - CTF-D
– Feature
· Dual block
· A wide range of interchangeable blocks to fit any sample tube or vial.
· Block combined with the close fit of the tube for fast efficient heat transfer.
· THERMO BLOCK with a digital microprocessor controller (PID) to maintain the bi-section of high & low temperature compartments.
· Alarm Function : Over-temperature, malfunction of sensors.
· Included of digital timer : up to 99 hr. 59min.
· Block for excellent chemical resistance to acids, bases and solvents by anodizing treatment.
· CE certified
– Specification
| Model | CTF-D | |
|---|---|---|
| Left | Right | |
| Temp. rang | -5℃ ~ 110℃ | Ambient +5℃ ~ 150℃ |
| Temp. accuracy | ±0.2℃ | ±0.1℃ |
| Temp. uniformity | ±0.2℃ | ±0.1℃ |
| Temp. control | 2 Zone P.I.D.control | |
| Timer | 1min ~ 99hour 59min | |
| Cooling | Thermoelectric module | – |
| Heating | Catridge Heater | |
| Material | Powder coated steel & Stainless steel | |
| Dimension ( W×D×H, mm ) | 267 × 262 × 200 | |
| Power | AC100 ~ 120V, 50/60Hz
AC220 ~ 240V, 50/60Hz |
|
| Wattage | 310W | |
| Weight | 6.7 kg | |
– Price
· 1,800,000 원 (부가세 별도, 블럭미포함)
